Logo SIAMP
Innovative design, manufacture and distribution of sanitary equipment

Trueflow

DescriptionTechnical DrawingsText For TendersDownloads
  • For back to wall WC
  • For use inside wall or furniture
  • Low level installation
  • Wall or furniture fixing
  • Remote cable flushing
  • Bright chrome dual flush top or front flushing
  • Cistern and lid made from PS
  • 6 litres insulated cistern. Conforms to EN 14055 class 2 flushing standards
  • Dual flush cable outlet valve, 6/4l. factory preset. WRAS and NF approved
  • Quiet fill inlet valve
  • Bottom inlet supply
  • 1/2″ plastic water inlet connection
  • Height and depth adjustable supply pipe with pan seal
Trueflow Drawings 1Trueflow Drawings 2

TRUEFLOW

Réf: 31 0147 18

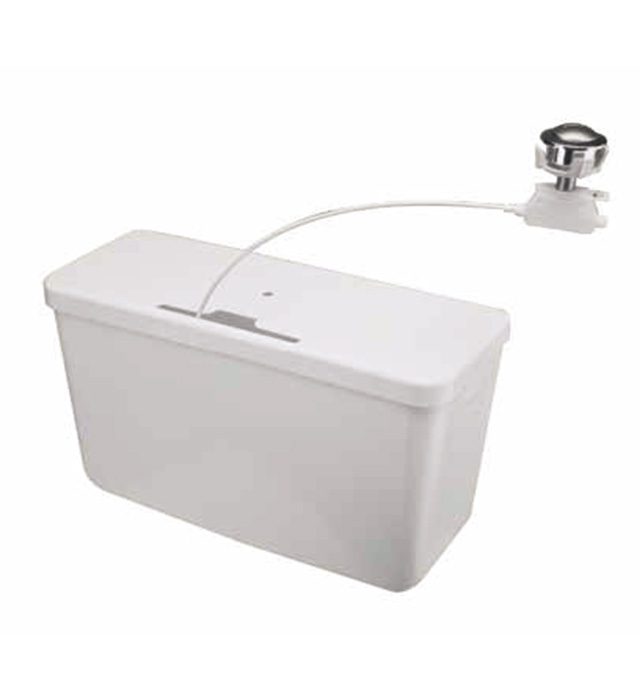

Concealed cistern for back to wall WC. WRAS and NF approved components. Cable flushing, bright chrome dual flush top flushing. 6 litres cistern equipped with a dual flush outlet valve and a quiet fill inlet valve. Water inlet connection on the bottom of the cistern with 1/2″ plastic tail. Dimensions height 436 mm, width 260 mm and depth 160 mm.
Delivered with fixing and connection accessories.

  Ref. Barecode Packing Packing Pallet
Quantity
Nb Kg
TRUEFLOW
Bottom inlet
31 0147 18 3 24723 002518 3 Carton 1 0,012 2,25 96

Product File


Manuals


Declaration of Performance
