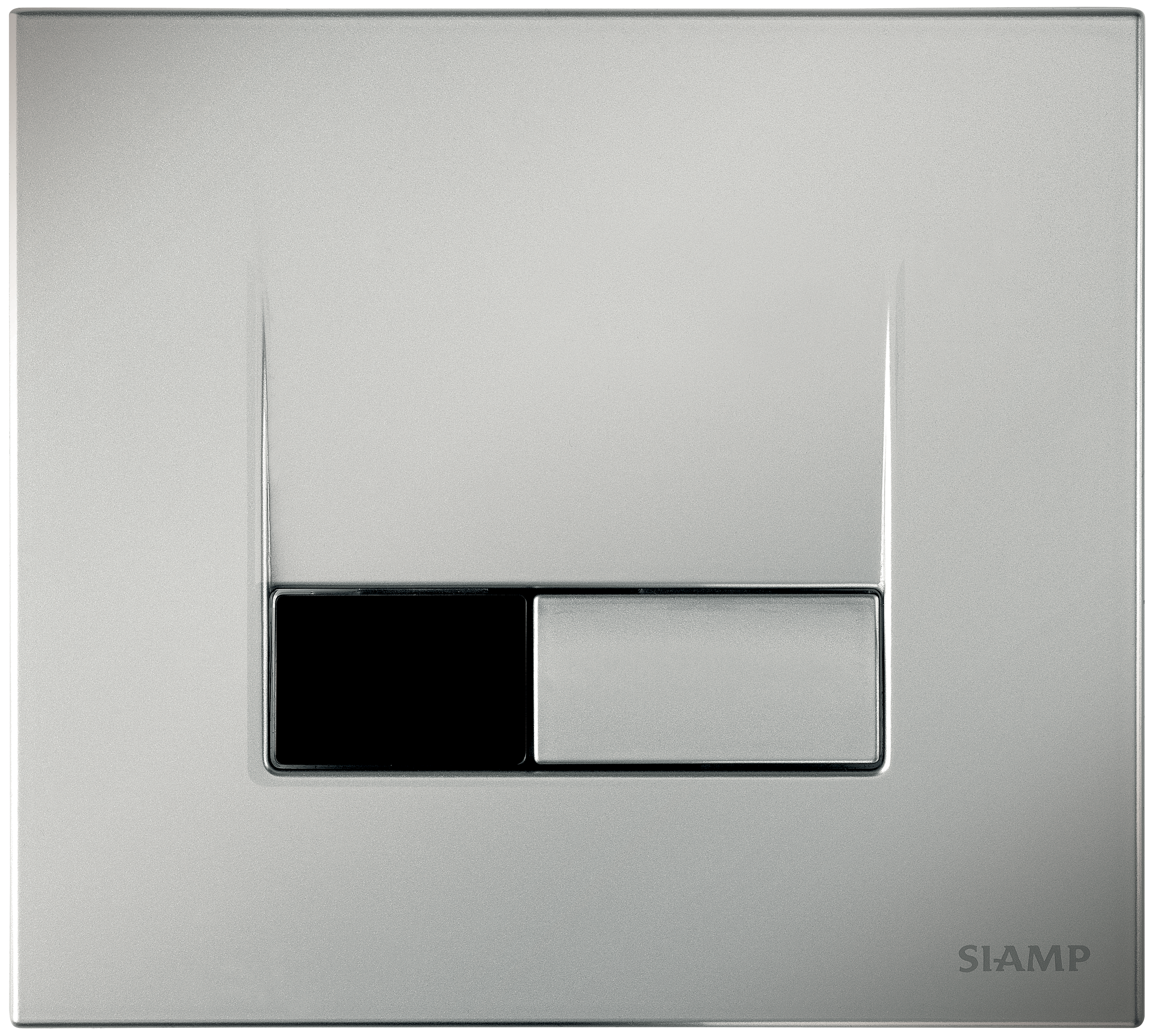

Smart MV Infra-Red

Can be installed on BCM – BCU 350


DescriptionTechnical DrawingsText For TendersDownloads
  • Modern and smart design
  • Made from aluminium alloy
  • Matt chrome finish
  • Automatic pan flushing
  • User does not need to touch buttons, which prevents bacteria, mould and fungi transmission
  • Vandal resistant
  • Single flush
  • Automatic infra-red actuation:
    • senses user presence after 12 seconds
    • infra-red beam reaches a distance of 60 cm and has a 22° radius from sensor
    • flushes once user has left
    • servomotor flush valve actuation
    • very low voltage power supply (using transformer)
  • Failure function:
    • Flush can be performed with manual button
    • Actuation force below 20 Newton
  • Smooth actuating screws to avoid operating noise
  • Hand cuttable fixing and actuation screws for adapting length to cladding
  • Flush plate serves as an access point for reaching the cistern equipment
  • Cladding thickness between 16 and 100 mm
SMART MVI technical drawing
SMART MVI technical drawing


Réf: 31 19….. 10

Single flush actuation plate, made from aluminium alloy matt chrome finish, including a automatic infra-red actuation with a servomotor flush valve actuation, supplied with a manual button flush and a vandal resistant system. 2-year guarantee. Dimensions height 180 mm, width 200 mm and depth 11 mm.
Delivered with wall fixing frame, 2 fixing screws, 1 actuation screw, 1 base supporting the servomotor, 1 cable transformer, 1 case flush IP54, 1 protective tube and 1 vandal resistant headless screw M4x12. Necessary spanner.

  Ref. Barecode Packing Packing Pallet
Nb Kg
Matt chrome
31 1950 10 3 24723 002148 2 Carton 12 0,14 18
