Can be installed on BCM 790, BCM – BCU 350 and Intraslim B
DescriptionTechnical DrawingsText For TendersDownloads
- Zen design
- Made from ABS
- Decorative versions:
- White

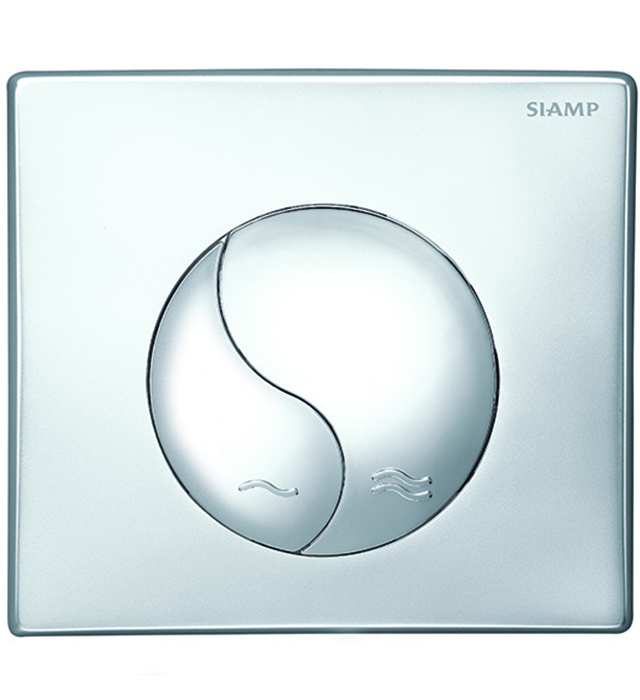

- Bright chrome plated
- Bright chrome (bright chrome plated frame and large button and matt chrome finish for small button)

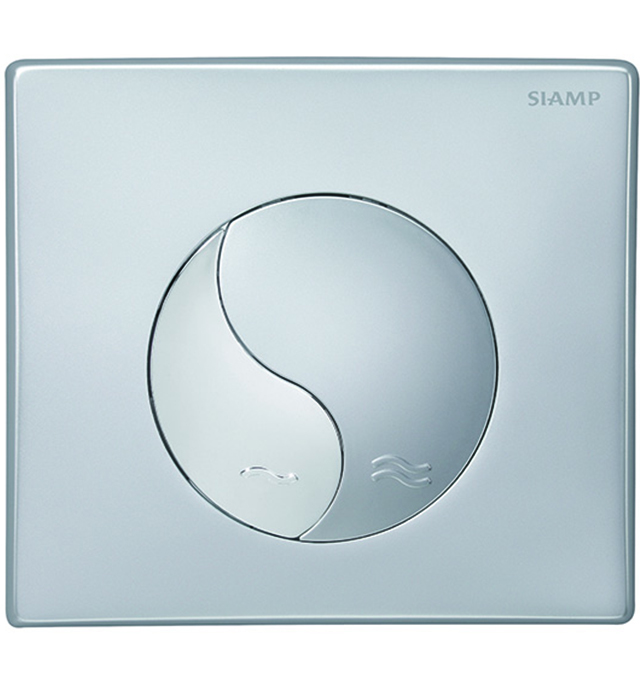

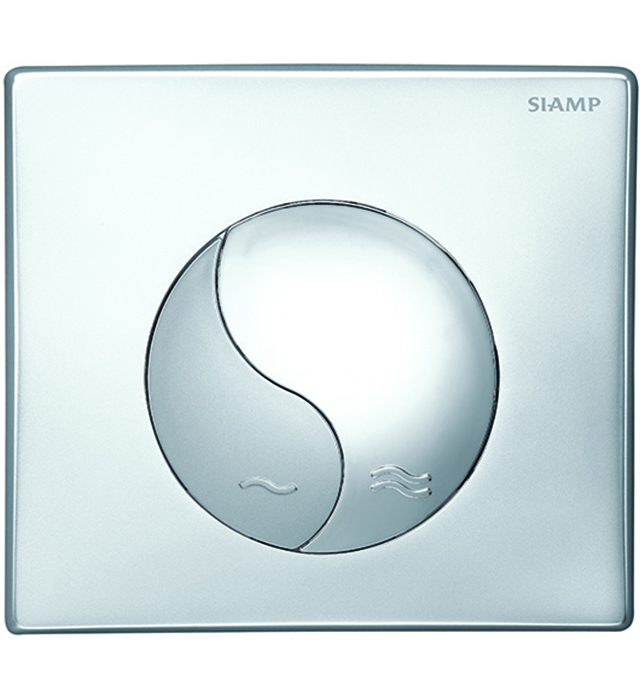

- Matt chrome (matt chrome finish for plate and large button, bright chrome plated small button)
- Dual flush
- Mechanical actuation
- Actuation force below 20 Newton
- Smooth actuating screws to avoid operating noise
- Hand cuttable fixing and actuation screws for adapting length to cladding
- Flush plate serves as an access point for reaching the cistern equipment
- Cladding thickness between 16 and 100 mm
YIN YANG
Réf: 31 18….. 10
Dual flush actuation plate, made from ABS, ………… finish. 2-year guarantee. Dimensions height 180 mm, width 200 mm and depth 22 mm.
Delivered with wall fixing frame, 2 fixing screws and 2 actuation screws. Necessary spanner.
| Ref. | Barecode | Packing | Packing | Pallet Quantity |
|||
|---|---|---|---|---|---|---|---|
| Nb | M² | Kg | |||||
| YIN YANG White | 31 1800 10 | 3 24723 001304 3 | Carton | 40 | 0,096 | 14 | – |
| YIN YANG Bright chrome | 31 1853 16 | 3 24723 001899 4 | Carton | 40 | 0,096 | 14 | – |
| YIN YANG Bright chrome Matt chrome | 31 1853 10 | 3 24723 001489 7 | Carton | 40 | 0,096 | 14 | – |
| YIN YANG Matt chrome Bright chrome | 31 1850 10 | 3 24723 001305 0 | Carton | 40 | 0,096 | 14 | – |
