- Delayed action
- Low pressure
- 99 OD saves water by delaying cistern filling while flush valve is opened
- Compact
- Can be installed into ceramic or plastic cisterns, for replacement or as original equipment
- Hydraulic closure (no water hammer shock)
- Adjustable water level
- Quiet
- Anti-backflow function
- Pressure function range: 0.1 to 10 bar
- Flow rate 0.22l/s at 3 bars
- 1/2″ plastic connection

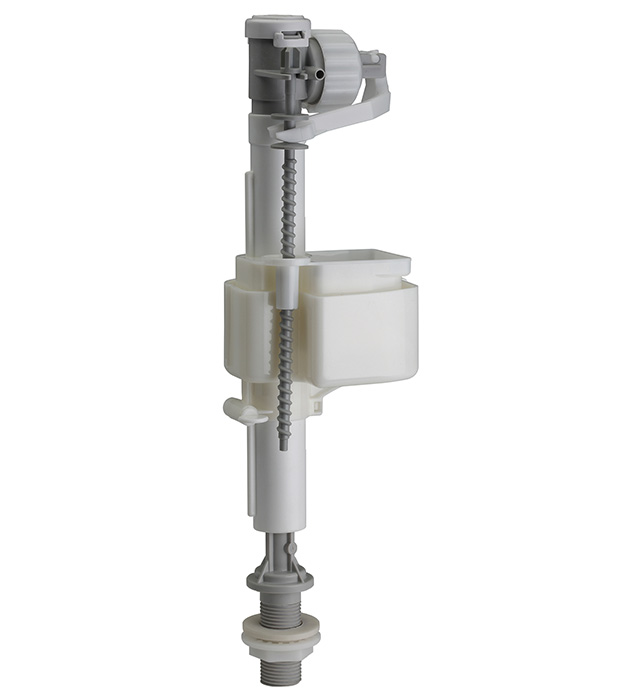

COMPACT OD 99BP
Bottom entry inlet valve with 1/2″ plastic connection, NF and WRAS certified and 10-yearguarantee.
Features : delayed action, low pressure, quiet, hydraulic closure, adjustable water level and anti-back flow. Length 284mm, width 92mm, deepth 66mm.
| Ref. | Barecode | Packing | Packing | Pallet Quantity |
|||
|---|---|---|---|---|---|---|---|
| Nb | M² | Kg | |||||
| COMPACT OD 99BP Low Pressure 1/2″ plastic Delayed Inlet Valve | 30 9911 07 | 3 24723 004265 4 | Box | 24 | 0,08 | 8.75 | 360 |
