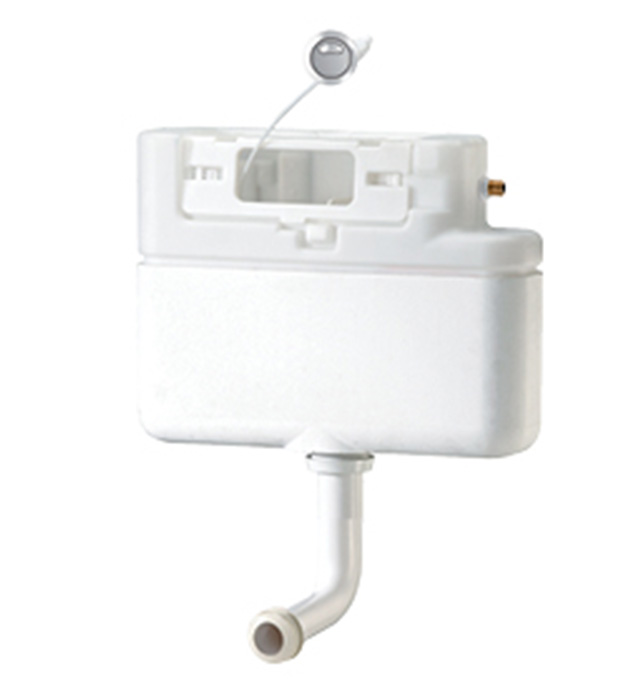

Intra Cable Side Inlet

DescriptionTechnical DrawingsText For TendersDownloads
  • For back to wall WC
  • Recessed with an access cover inside wall or furniture
  • Low level installation
  • Wall or furniture fixing
  • Remote cable flushing
  • Bright chrome dual flush top or front flushing
  • Cistern and lid made from HDPE
  • 6 litres insulated cistern. Conforms to EN 14055 class 2 flushing standards
  • Outer anti-condensation PSE insulation
  • Dual flush cable outlet valve, 6/4l. factory preset. WRAS and NF approved
  • Quiet fill inlet valve
  • Side inlet supply
  • 1/2″ brass water inlet connection
  • Height and depth adjustable supply pipe with pan seal
  • Can be adapted for less able use
Intra Cable Side Drawing

INTRA CABLE Side inlet

Réf: 31 0148 10

Concealed cistern for floor mounted, back to wall WC. WRAS and NF approved components, 10-year guarantee. Cable flushing, bright chrome dual flush top or front flushing. 6 litres insulated cistern equipped with a dual flush outlet valve and a quiet fill inlet valve. Water inlet connection on the right side of the cistern with 1/2″ brass tail. Dimensions height 340 mm, width 460 mm and depth 127 mm.
Complete delivery with fixing and connection accessories.

  Ref. Barecode Packing Packing Pallet
Quantity
Nb Kg
INTRA CABLE
Side inlet
31 0148 10 3 24723 002194 9 Carton 1 0,029 2,82 84
